- 2 cổng Ethernet WAN 10/100Mbps(WAN 1: cổng quang trực tiếp SFP, WAN 2 chuyển đổi từ LAN 1, RJ45).
- 3 cổng Ethernet WAN 10/100Mbps, RJ45. 1 cổng USB kết nối 3G/4G.
- Dual-WAN Load Balance/Failover. Hỗ trợ đường truyền đa dịch vụ: IPTV, Internet, VoIP,..
- 30.000 NAT Session, throughput: 93Mbps. Hỗ trợ triển khai các dịch vụ cao cấp: Static IP, PPOE, PPTP,L2TP, DHCP,…
- VPN 16 kênh (PPTP, IPSec, L2TP,…), VPN Trunking (LoadBalance/Backup).VPN qua 3G/4G(Dial-out).
- Kiểm soát và quản lý băng thông giúp tối ưu hóa đường truyền internet.
- Firewall mạnh mẽ, linh hoạt, quản trị viên phân quyền truy cập Internet(IP/MAC Address,…)
- Khả năng xử lý được nâng cao, cân bằng tải linh hoạt và mạnh mẽ hơn.
- User-Based quản lý người dùng theo tài khoản.
- Cho phép quản lý từ xa với phần mềm ACS 2 qua TR-069.

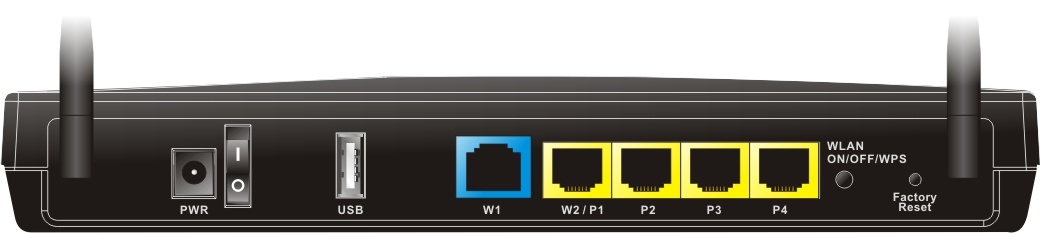

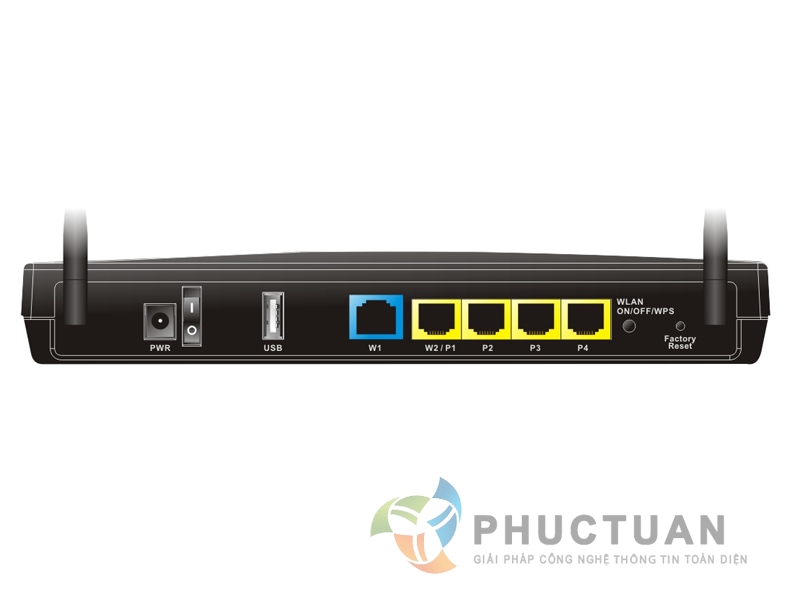

| PHẦN CỨNG |
| Port |
- 1 x 10/100 Base-TX WAN, slot SFP, Configurable WAN2 on P1
- 4 x 10/100 Base-TX LAN, RJ45
- 1 x USB Host 2.0 (for 3G USB Modem/USB Disk)
|
| Nguồn |
|
| Nút điều khiển |
|
| PHẦN MỀM |
| WAN |
- IPv4 Ethernet WAN
- DHCP Client
- Static IP
- PPPoE
- PPTP
- L2TP
- 802.1p/q Multi-VLAN Tagging
- IPv6 Ethernet WAN
- Tunnel Mode:
- Dual Stack:
- DHCPv6 Client
- Static IPv6
- DSLite*
- USB WAN
- Outbound Policy-based Load-balance
- WAN Connection Failover
- 30,000 NAT Sessions
|
| Network |
- DHCP Client/Relay/Server
- RADVD for IPv6
- DHCPv6 Server
- Static IPv6 Address Configuration
- IGMP Proxy V2/V3
- IGMP Snooping
- Dynamic DNS
- NTP Client
- RADIUS Client
- DNS Cache/Proxy
- UPnP 30 Sessions
- Routing Protocol:
- VLAN Tagging(802.1q) on LAN*
- Support Route Policy Function
|
| Management |
- Web-based User Interface (HTTP/HTTPS)
- Quick Start Wizard
- CLI (Command Line Interface, Telnet/SSH)
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/FTP/HTTP/TR-069
- Logging via Syslog
- SNMP V2/V3
- Management Session Time Out
- Two-level Management (Admin/User Mode)
- External Device
- TR-069
- Support Smart Monitor (Up to 30 PCs)
|
| Chất lượng dịch vụ |
- QoS :
- Guarantee Bandwidth for V oIP (VoIP QoS)
- Class-based Bandwidth Guarantee by User-defined Traffic Categories
- DiffServ Code Point Classifying
- 4-level Priority for Each Direction (Inbound/Outbound)
- Bandwidth Borrowed
- Bandwidth/Session Limitation
- Layer-3 (TOS/DSCP) QoS Mapping
- Smart Bandwidth Limitation (Triggered by Traffic/Session)
|
| VPN |
- Up to 16 VPN Tunnels
- Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
- Encryption : MPPE and Hardware-based AES/DES/3DES
- Authentication : MD5, SHA-1
- IKE Authentication : Pre-shared key and Digital Signature (X.509)
- LAN-to-LAN, Host-to-LAN
- IPsec NAT-traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Backup Mode
- DHCP over IPSec
- VPN Pass-through
- VPN Wizard
- mOTP
|
| Tính năng nâng cao |
Firewall
- Multi-NAT, DMZ Host, Port-redirection and Open Port
- Object-based Firewall
- MAC Address Filter
- SPI (Stateful Packet Inspection) (Flow Track)
- DoS/ DDoS Prevention
- IP Address Anti-spoofing
- E-mail Alert and Logging via Syslog
- Bind IP to MAC Address
- Time Schedule Control
- User Management
CSM
- (Content Security Management)
- IM/P2P Application
- GlobalView Web Content Filter (Powered by CYREN )
- URL Content Filter :
- URL Keyword Blocking (Whitelist and Blacklist)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking,
- Excepting Subnets
|
| USB |
- File Sharing:
- Support FAT32 File System
- Support FTP Function for File Sharing
- Support Samba for File Sharing
- 3.5G (HSDPA)/4G (LTE)* as WAN3
|
| THÔNG SỐ KHÁC |
| Môi trường |
- Temperature Operating : 0°C ~ 45°C
- Temperature Storage : -25°C ~ 70°C
- Humidity 10% ~ 90% ( non-condensing )
|
